آلة الضغط الساخن عالية الطبقات
آلة الضغط الساخن عالية الطبقات

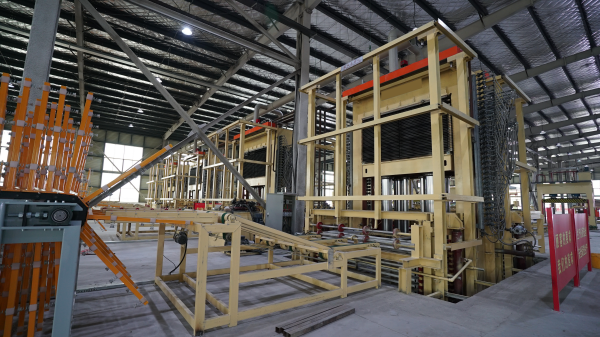

The high-layer hot press machine is designed to bond multiple layers of veneer or boards under high temperature and pressure. It ensures efficient and uniform pressing across all layers, ideal for mass plywood production.

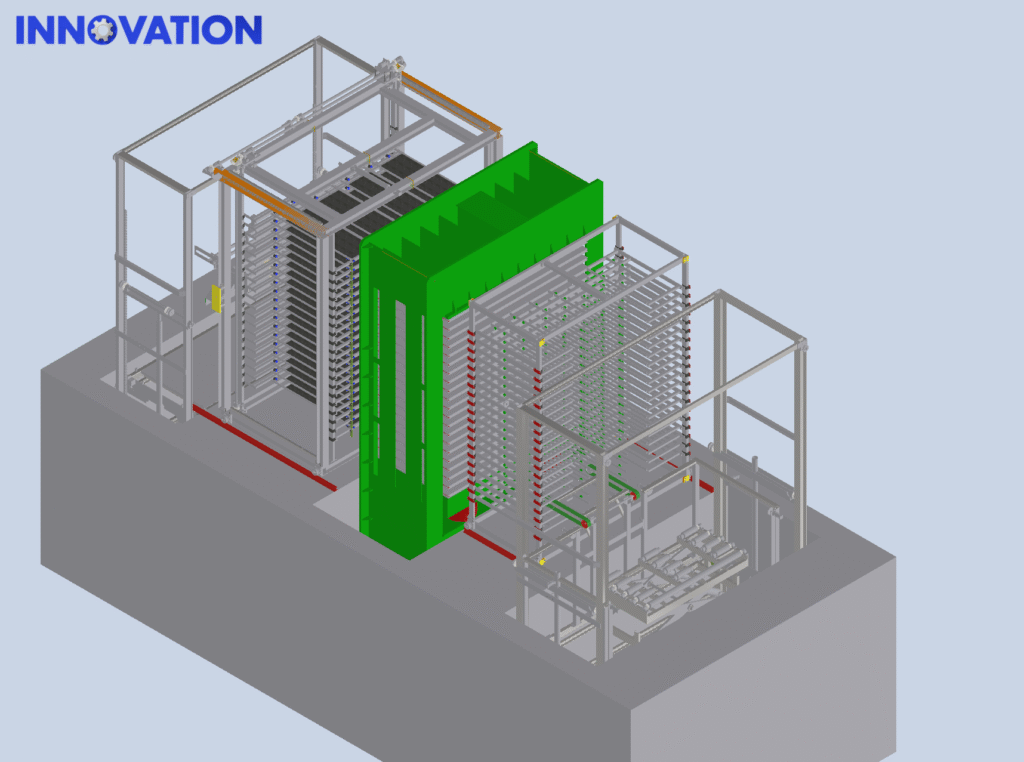

The high-layer hot press machine includes several key components essential for efficient plywood production.
مواصفة:
| 500T 20-Layer Hot Press Machine | |
| هيكل إطار المعدات | الإطار الملحوم: Upper Beam: 1000 mm الشعاع السفلي: 900 مم الشعاع الأوسط: 400 مم |
| سمك لوحة إطار الفولاذ | 40 ملم Welded Frame Upright Leg Width: 370 mm × 4 pieces All surfaces are precision-machined by planer. |
| Daylight Spacing | 70mm |
| حجم لوحة الضغط الساخن | 2700 مم × 1370 مم × 42 مم |
| Press Plate Slide Groove | 40 × 40 long diamond-shaped, made of Q355B manganese steel |
| Hot Press Plate Oil Circuit | Single plate with double inlet and double outlet design for uniform heat transfer and minimal surface temperature difference |
| Hot Press Plate Quantity | 21 لوحة |
| تسامح التسطيح | في حدود 0.1 ملم |
| الأسطوانة الهيدروليكية الرئيسية | ① Model: 260 × 1400 mm ② Cylinder Origin: Chenfeng, Wuxi ③ مادة الأسطوانة: جسم أسطوانة من الفولاذ المصبوب، مكبس سبيكة، هيكل مطفأ صلب، مقاوم للتآكل وخالٍ من الخدوش ④ Quantity: 4 units ⑤ ضغط العمل المقدر: 26 ميجا باسكال |
| النظام الهيدروليكي | محطة هيدروليكية قياسية خالية من التلوث ① Taiwan Jiugang hydraulic valves ② High-performance vane pump ③ Oil pump origin: Shanghai |
| طريقة التسخين | Thermal oil / Steam |
| المحرك | ① Low-pressure pump motor model: 11KW-4 ② Quantity of low-pressure pump motors: 2 units ③ High-pressure pump motor model: 7.5KW-4 ④ Quantity of high-pressure pump motors: 1 unit |
| نظام التحكم | Control Method: PLC fully automatic computer program control |
Features:
Multi-Layer Pressing System–Designed to press 10 to 20+ layers simultaneously, ideal for large-scale plywood production.
النظام الهيدروليكي–Ensures powerful and stable pressure distribution during the entire pressing cycle.
PLC Control Panel–Enables real-time monitoring and precise control of temperature, pressure, and pressing time.
Heavy-Duty Frame Structure–Robust and vibration-resistant body ensures long-lasting performance under intensive use.
Automatic Loading/Unloading–Streamlines the material handling process, improving workflow and safety.
Advantages:
High Production Efficiency – Capable of pressing multiple plywood layers at once, significantly increasing output and reducing processing time.
Uniform Bonding Quality – Delivers consistent heat and pressure across all layers, ensuring strong adhesion and improved product durability.
Labor Cost Reduction – Automated loading, pressing, and unloading minimize manual handling and reduce labor requirements.
Energy Efficient Operation – Advanced thermal systems optimize energy usage while maintaining stable performance.
Reliable for Continuous Operation – Built for durability and 24/7 industrial use, minimizing downtime and maximizing factory productivity.
