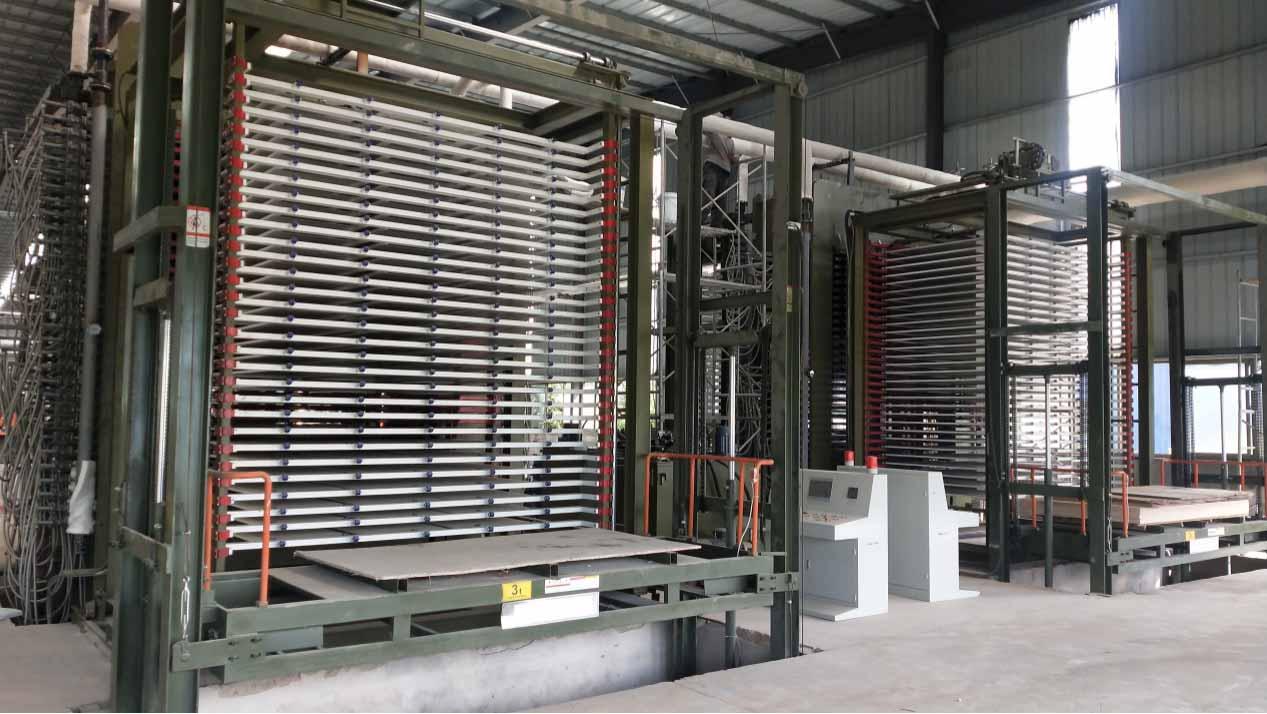

A plywood hot press machine is an essential piece of equipment in the plywood manufacturing industry. It is used to bond layers of veneer into a single plywood sheet by applying heat and pressure. The performance and quality of the final plywood product largely depend on the proper functioning of this machine. To understand how a hot press machine works, it is important to become familiar with its main components. Below is an introduction to the key parts of a typical plywood hot press machine.

Shandong Chuangxin Automation Equipment Co., Ltd is a professional plywood machines manufacturer in China. We have our own factory and customize the equipment according to your needs. You can purchase high-quality machines here. We look forward to your inquiry.

1. Main Frame

The main frame is the structural backbone of the hot press machine. It is typically made of heavy-duty steel and designed to withstand high pressure and temperature. The frame holds all other components in place and provides the necessary support during the pressing operation.

2. Hot Press Plates (Platens)

Hot press plates, also called platens, are large flat surfaces that directly apply heat and pressure to the plywood. These plates are usually heated by steam, oil, or electric systems to maintain a stable and uniform temperature. The quality of the platens is crucial, as they affect the heat transfer efficiency and pressing consistency.

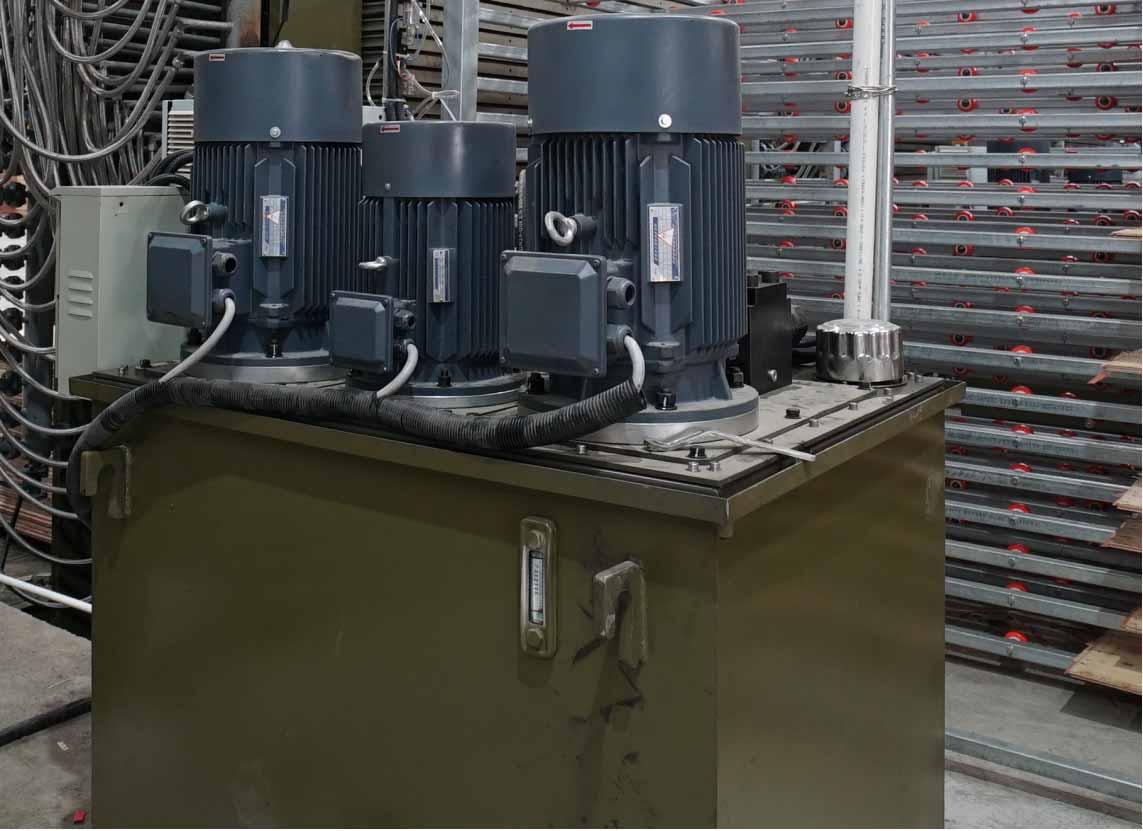

3. Hydraulic System

The hydraulic system generates and controls the pressure required during the hot pressing process. It includes hydraulic cylinders, a hydraulic pump, valves, and a control unit. The cylinders move the platens up and down, applying the necessary force to compress the plywood. A reliable hydraulic system ensures smooth, uniform pressing without sudden pressure loss.

4. Heating System

The heating system provides the required temperature for curing the adhesive between the veneer layers. Common heating methods include steam heating, thermal oil heating, and electric heating. The heating system must maintain consistent temperature levels across all platens to ensure even bonding.

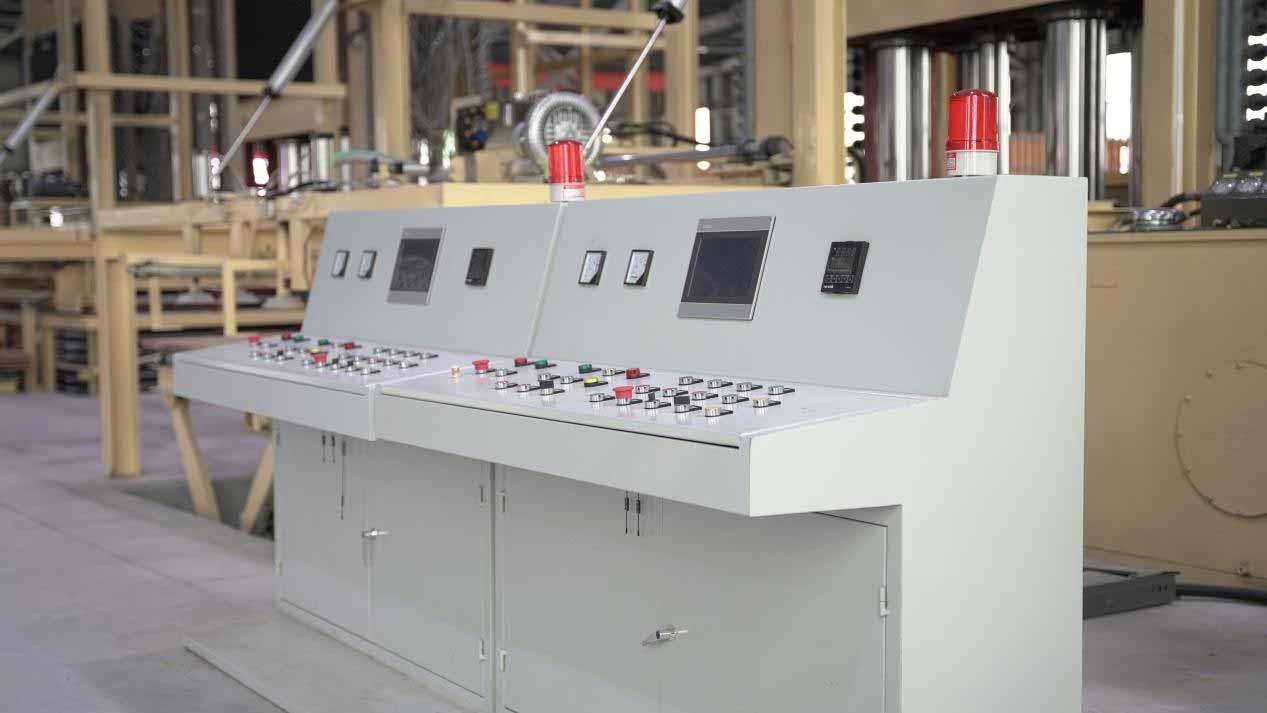

5. Control System

The control system is the brain of the hot press machine. It allows operators to manage settings such as temperature, pressure, and pressing time. Modern machines often use PLC (Programmable Logic Controller) systems with touchscreens for precise and automated control. Advanced control systems help improve efficiency, reduce human error, and ensure consistent product quality.

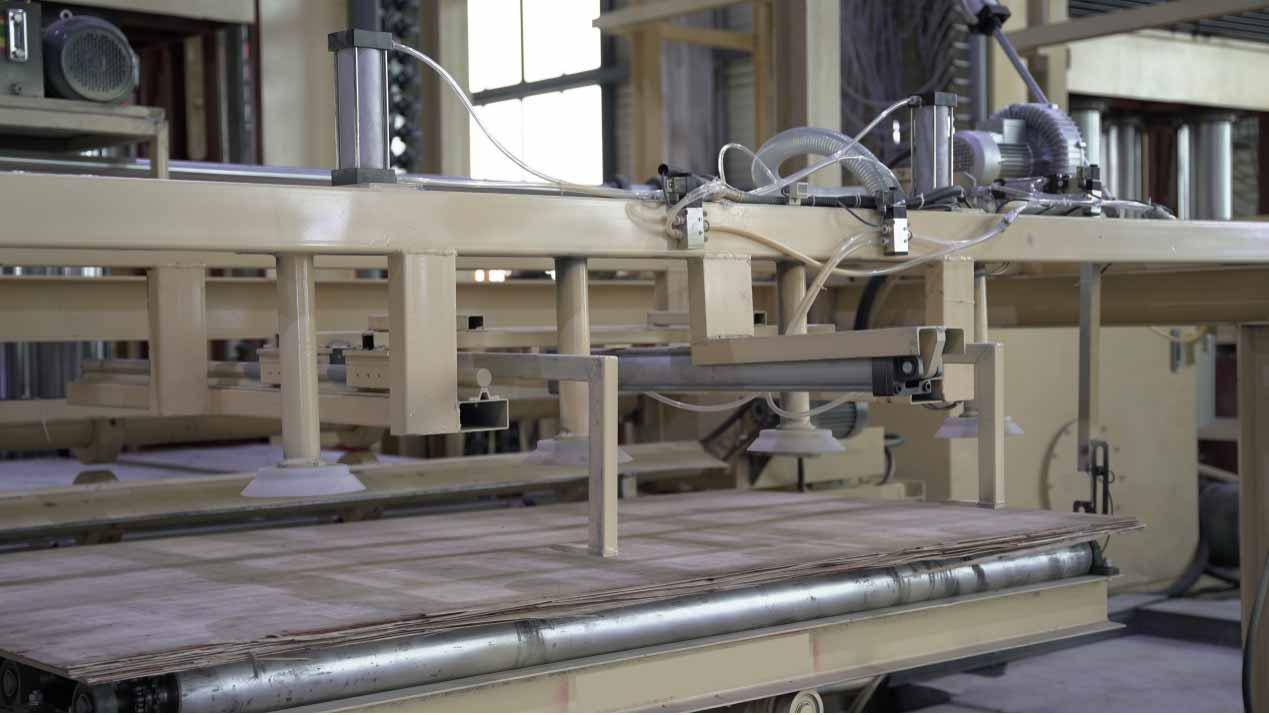

6. Pressing Carriage or Loading System

This component is responsible for loading and unloading the plywood sheets into the hot press. It may include conveyor belts or lifting devices that move the plywood layers into position. A well-designed loading system enhances production speed and reduces labor costs.

7. Safety Devices

Hot press machines operate under high temperature and pressure, so safety is critical. Safety devices include emergency stop buttons, pressure relief valves, temperature alarms, and protective guards. These features help prevent accidents and protect both the operator and the equipment.
