Hot Press Machine

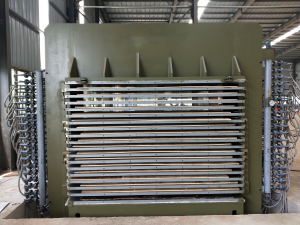

The plywood hot press machine bonds veneer layers using heat and pressure, ensuring strong adhesion, smooth surfaces, and high production efficiency in plywood manufacturing processes.

Specification:
500T 20-Layer Hot Press Machine | |
Equipment Frame Structure | Welded Frame: Upper Beam: 1000 mm Lower Beam: 900 mm Middle Beam: 400 mm |
Frame Steel Plate Thickness | 40 mm Welded Frame Upright Leg Width: 370 mm × 4 pieces All surfaces are precision-machined by planer. |
Daylight Spacing | 70mm |
Hot Press Plate Size | 2700 mm × 1370 mm × 42 mm |
Press Plate Slide Groove | 40 × 40 long diamond-shaped, made of Q355B manganese steel |
Hot Press Plate Oil Circuit | Single plate with double inlet and double outlet design for uniform heat transfer and minimal surface temperature difference |
Hot Press Plate Quantity | 21 plates |
Flatness Tolerance | Within 0.1 mm |
Main Hydraulic Cylinder | ① Model: 260 × 1400 mm ② Cylinder Origin: Chenfeng, Wuxi ③ Cylinder Material: Cast steel cylinder body, alloy plunger, solid quenched structure, wear-resistant and scratch-free ④ Quantity: 4 units ⑤ Rated Working Pressure: 26 MPa |
Hydraulic System | Pollution-free standard hydraulic station ① Taiwan Jiugang hydraulic valves ② High-performance vane pump ③ Oil pump origin: Shanghai |
Heating Method | Thermal oil / Steam |
Motor | ① Low-pressure pump motor model: 11KW-4 ② Quantity of low-pressure pump motors: 2 units ③ High-pressure pump motor model: 7.5KW-4 ④ Quantity of high-pressure pump motors: 1 unit |
Control System | Control Method: PLC fully automatic computer program control |
Features:
Precise Temperature and Pressure Control – Advanced control systems maintain stable pressing conditions for consistent quality.
Robust Frame Structure – Built with heavy-duty steel for long-term stability and durability under continuous operation.
Flexible Heating Options – Supports thermal oil, steam, or electric heating systems to meet various production requirements.
