Plywood Paving Machine
Product category
Plywood Paving Machine

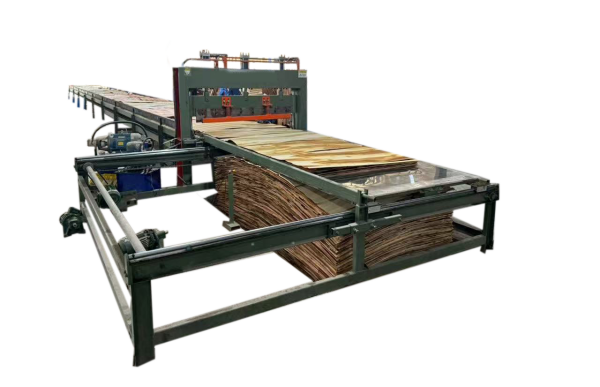

The automatic plywood paving machine accurately lays veneer layers onto plywood bases using an automated feeding and positioning system.
The plywood paving machine consists of several key components that ensure efficient and precise veneer laying.
The automated feeding system delivers veneers smoothly to the working area. Hydraulic and PLC control units manage the positioning and speed with high accuracy. The cutting system, available in both saw and guillotine types, handles veneer trimming. Conveyor belts transport materials seamlessly through the machine. The control panel provides user-friendly operation and real-time adjustments. Additionally, the frame structure ensures durability and stability during continuous production. These components work together to optimize performance, reduce labor, and improve the overall quality of plywood panels.
Specification：
| Power | 13.5kw |
| Dimension | 2700*1150*1580mm |
| Weight | 5600kgs |
| Cutting type | Saw/blade |
| Board stacking methods | 1300mm |
| Capacity | 800-1500pcs |
| Specifications | 18m/24m/30m/36m |
The machine can be tailored to specific factory layouts and production requirements, providing flexibility for different plywood types and capacities.
Features:
Automated Feeding and Positioning – Uses hydraulic and PLC-controlled systems for smooth, consistent veneer feeding and alignment.
Dual Cutting Options – Equipped with both saw and guillotine cutting methods, suitable for veneers of 5mm to 100mm in thickness.
Various Length Options – Available in multiple lengths (18m, 24m, 30m, 36m), and customizable according to workshop size and output needs.
User-Friendly Interface – Simple control panel and display allow for easy operation and real-time parameter adjustments.
Eco-Friendly Operation – Low noise and energy-efficient design help create a safer, more environmentally conscious production environment.
This makes the plywood paving machine an essential piece of equipment for modern plywood production lines.
